APLUSLIFT HW-10KBP-A 10000 LB 2-POST FLOOR PLATE HEAVY DUTY CAR LIFT WITH 3 YEAR WARRANTY

• INDUSTRY LEADING 3 YEAR WARRANTY

• COMBO (SYMMETRICAL AND ASYMMETRICAL) ARM ASSEMBLY WITH ADJUSTABLE SCREW PADS!

• CE CERTIFIED LIFT STRUCTURE AND HYDRAULIC SYSTEM – TESTED 115% DYNAMIC LOAD CAPACITY AND 150% STATIC LOAD CAPACITY

• ONE SET OF 4″ TALL TRUCK ADAPTERS INCLUDED; 6’9″ LIFT HEIGHT MAXIMUM WITH TRUCK ADAPTERS

• ALL ROBOT WELDED STRUCTURE WITH DURABLE POWDER COATED FINISH

APLUSLIFT HW-10KBP-A CAR LIFT (AUTO HOIST) IS ONE OF THE MOST AFFORDABLE FLOOR PLATE CAR LIFTS BUILT WITH QUALITY MATERIALS AND GOOD WORKMANSHIP. THE LIFT HAS A STRONG DOUBLE “S” COLUMN DESIGN TO SUPPORT 10,000 LB CAPACITY.

SPECIFICATIONS

• Installation Manual
• Overall Height: 113 5/8″
• Overall Width: 134 5/16″
• Maximum Lift height with Truck Adapters: 81″
• Maximum Lift height without Truck Adapters: 75″
• Minimum Height of Arm Top: 4.5″
• Drive Through Width (Carriage to Carriage): 100″
• Column to Column Width: 109″
• Column Cross Section: 11″L x 7″W
• Floor Plate Cross Section: 10 5/8″W x 1 7/8″H
• Driving Mode: Dual hydraulic cylinders, chain drive
• Motor: 220V Single Phase 3HP 10A (recommend a 30A breaker)
• Hydraulic Oil: 3-5 gallons AW32/AW46 (Not Included in the Package)
• Lifting Capacity: 10,000 LB
• Time to full rise: 50 sec

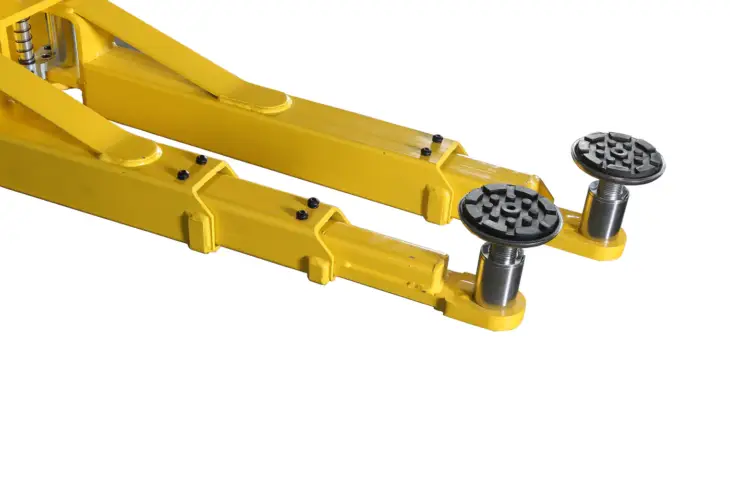

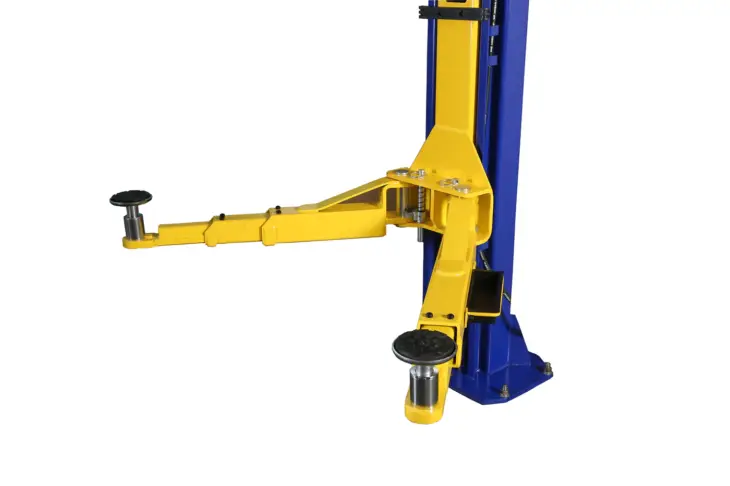

• Combo (Symmetrical and Asymmetrical) Arm Assembly
• Straight Front/Rear 3 Stage reach from 22 7/8″ to 42 5/8″
• Straight Rear 2 Stage reach from 33 5/8″ to 52 7/8″
• 4 Pieces of Adjustable Screw Pads Included
• 4 Pieces of 4″ Tall Truck Adapters (Height Extensions) Included
• Shipping Weight: 1,350 LB
• Shipping package size: 113″L x 22″W x 40″H
• Concrete Requirement: 6″ thick at 3500 psi reinforced with fiberglass or steel (4″ thick for vehicles 9000LB and below)
• 10 anchor bolts and 10 shims included
• Tool trays and toe guards included
• Column Steel Thickness: 13/64″
• Carriage Steel Thickness: 15/64″
• Carriage Yoke Thickness: 9/16″
• Arm Steel Thickness: 15/64″
• Base Plate Steel Thickness: 5/8″

FEATURES

• CE Certified Lift Structure and Hydraulic System
• Third party tested with a dynamic load capacity of 115%
• Third party tested with a static load capacity of 150%
• Durable hydraulic system
• Easy to operate and maintain
• Double point safety lock release
• Double Seal Rings Protecting PU Material
• Carriage Material Q355 (ASTM A572), Stronger Than Normal Q235 Steel
• Lifting operation by pressing “UP” button on motor
• Manual lowering operation by pressing lever
• Relief valve built in power pump to prevent overloading
• Automatic arm lock restraints
• Relief valve built in power pump to prevent overloading
• Door guards protection rubber
• Up-limit switch to protect cylinders working stroke used in safe length scope
• Heavy duty 3/8″ diameter cable and 5″ pulley that reduce high stress on synchronization process and increase cable life
• Upgraded Floor Plate, Beveled Diamond Plate Steel 5/32″ with Supporting Bracket.
• Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
