12,000 LBS 2 POST LIFT ****SINGLE POINT LOCK RELEASE****TWO POST AUTO CAR LIFT
The 12,000 lbs 2 post lift with a single point lock release is a type of automotive lift designed for car lifting and maintenance. This lift has a capacity of 12,000 pounds, making it suitable for lifting a variety of vehicles. The single point lock release feature provides a more secure and convenient way to lock and unlock the vehicle during lifting, compared to traditional two-point lock releases. The lift’s two post design provides stability and allows for lifting the vehicle from the front and rear, providing improved access to the undercarriage for maintenance and repairs. This lift is ideal for automotive shops and garages that require a heavy-duty lifting solution for cars and trucks.
SPECIFICATIONS:
| Model | AL-120RH |
| Capacity | 12000 lbs. |
| Max Lift Height | 72“ (1830mm) |
| Minimum Pad Height | 4.33“ (110mm) |
| Overall Height | 147“ (3720mm) |
| Overall Width | 135“ (3430mm) |
| Width Between Columns | 111“ (2820mm) |
| Drive thru Clearance | 104“ (2650mm) |
| Lifting Time | 40s (Adjustable) |
| Lowering Time | 30s (Adjustable) |
| Column Thickness of Steel | 0.24” (6mm) |
| Carriage Thickness of Steel | 0.24” (6mm) |
| Arms Thickness of Steel | 0.24” (6mm) |
| Motor Power | 3.0kw |
| Voltage | 220V 1ph |
| Noise | <70db |
| Net weight | 2101 lbs. (953kg) |
| Gross weight | 2145 lbs. (973kg) |
| Packing size | 147″ x 18“ x 30“ (3720x460x750mm) |
| Pump Packing size | 36“x12“x14” (900x300x350mm) |
Features:
220V 60HZ 1PH 3HP motor :
- Safety Mechanism
- Capacity: 12,000 lbs

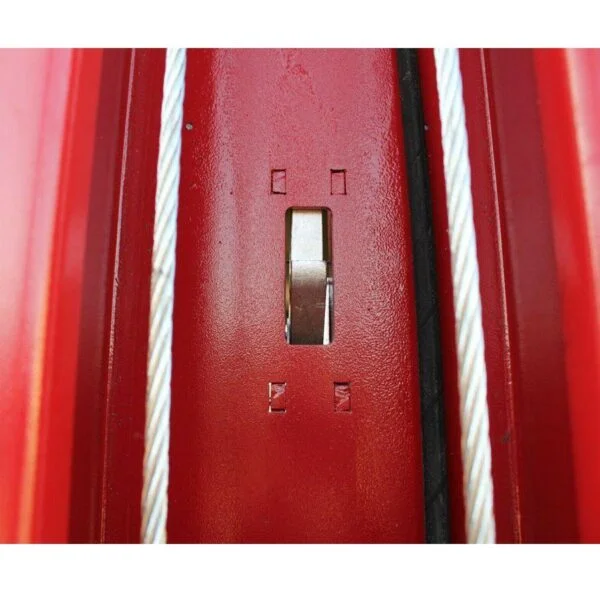

- Single Point Safety Lock Release

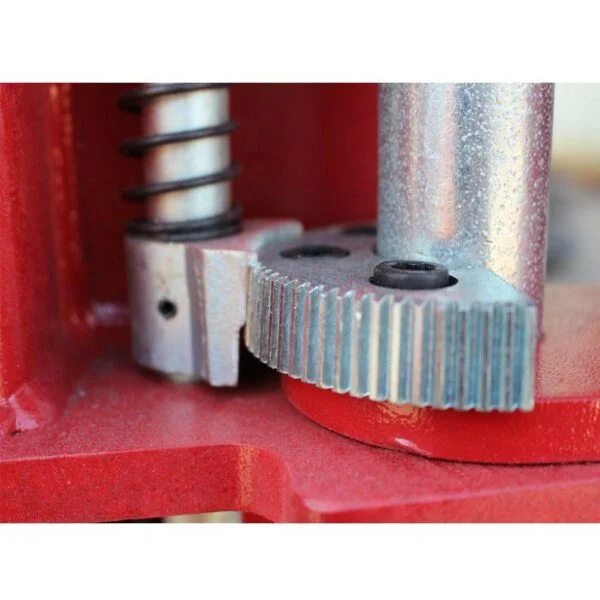

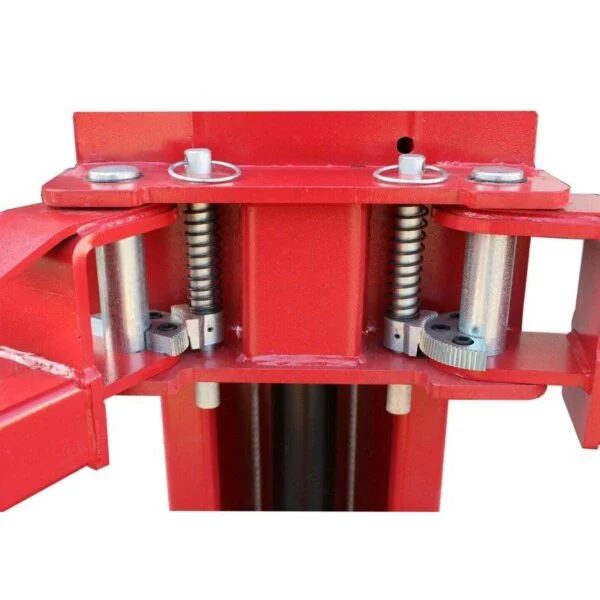

- Automatic arm lock restraints
- Relief valve built in power pump to prevent overloading
- Door guards protection rubber

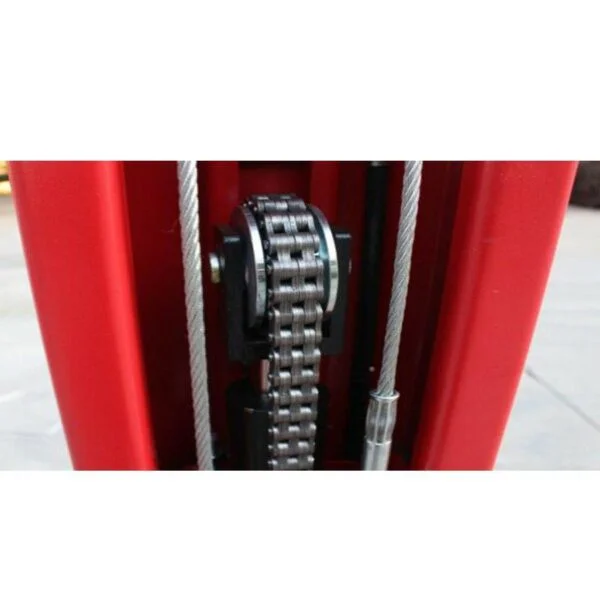

- Heavy duty 5/16″ diameter cable and 4.56″ pulley reduce high stress on synchronization process and increase cable life
- Stiffened base plate 5/8″ thickness
- Ultra high molecular self lubricating nylon slider ensures carriage smooth moving up and down
- Anchor bolts/mounting hardware included
